The procedure for calibrating the directional control mechanisms on a Husqvarna zero-turn mower ensures precise maneuverability. This process modifies the responsiveness of the steering levers, directly impacting the machine’s ability to maintain a straight path and execute turns accurately. For example, altering the linkage between the control levers and the hydraulic drive system allows for fine-tuning of the mower’s response to operator input.
Proper calibration is crucial for maintaining optimal cutting performance and operator safety. Benefits include reduced operator fatigue, improved mowing efficiency, and minimized turf damage. Historically, such adjustments were more complex, requiring specialized tools and a deeper understanding of hydraulic systems. Modern designs often incorporate simplified adjustment mechanisms, making the process more accessible to users with basic mechanical knowledge.
The subsequent sections will delve into specific techniques, potential issues, and essential tools required for effective calibration. Addressing these topics ensures users can achieve peak performance and extend the lifespan of their equipment.
1. Lever Linkage
Lever linkage directly influences the accuracy of directional control in a Husqvarna zero-turn mower. It is the mechanical connection transferring operator input from the steering levers to the hydraulic drive system. Any slack, wear, or misalignment within this linkage translates into imprecise steering response. The levers may exhibit excessive play before engaging the drive, or the mower may deviate from a straight path despite the operator maintaining a constant lever position. Thus, the integrity of the lever linkage is paramount for achieving desired steering behavior.
Consider a scenario where a bushing within the lever linkage wears down over time. This creates play in the system. The result is delayed or diminished response when the operator attempts to make minor steering corrections, affecting the ability to cut straight lines along fences or flowerbeds, or make precise maneuvering on tight spot. Regular inspection and maintenance, including lubrication and replacement of worn components, are essential to prevent performance degradation. Adjustments to the linkage, as outlined in the Husqvarna service manual, can compensate for wear and restore the original responsiveness.
In summary, lever linkage forms a critical element of the overall steering control mechanism. Deficiencies in the linkage compromise directional precision. Addressing these issues through regular maintenance and appropriate adjustments ensures optimal operational performance, enhances the user experience and extends component longevity. Prioritizing linkage integrity contributes directly to the effectiveness of steering adjustment procedures in Husqvarna zero-turn mowers.
2. Hydraulic Calibration
Hydraulic calibration is a fundamental process directly influencing the effectiveness of steering on a Husqvarna zero-turn mower. It ensures balanced power distribution to the drive wheels, allowing the machine to maintain a straight course and execute precise turns. Without proper hydraulic synchronization, the mower will exhibit directional drift or inconsistent responsiveness, undermining the operator’s control.
-
Pump Flow Synchronization
This facet concerns the precise matching of hydraulic fluid output from each pump driving the individual wheels. If one pump delivers more flow than the other, the corresponding wheel will rotate faster, causing the mower to pull in that direction. Adjustments to the pump regulators, based on manufacturer specifications, are essential to equalize fluid delivery. Consider a scenario where the left pump delivers significantly higher flow. The mower constantly veers left, requiring continuous corrective action. Proper synchronization eliminates this tendency, enhancing operator control and reducing fatigue.
-
Bypass Valve Adjustment
Bypass valves regulate hydraulic pressure within the system. Incorrect settings can lead to either insufficient power or excessive sensitivity in the steering levers. For example, if the bypass valves are set too low, the mower may struggle on inclines or during heavy cutting. Conversely, overly high settings can cause jerky movements and reduced control precision. Optimizing bypass valve settings ensures balanced performance across varying terrain and cutting conditions, directly affecting steering responsiveness.
-
Motor Speed Matching
Although less commonly adjusted, the hydraulic motors driving the wheels must operate within a specified speed range relative to each other. Significant discrepancies in motor speed, due to internal wear or damage, contribute to steering instability. Diagnosing motor speed differences often requires specialized equipment to measure wheel RPM or hydraulic pressure at the motors. Correcting these imbalances involves motor repair, replacement, or shimming adjustments based on manufacturer guidance.
-

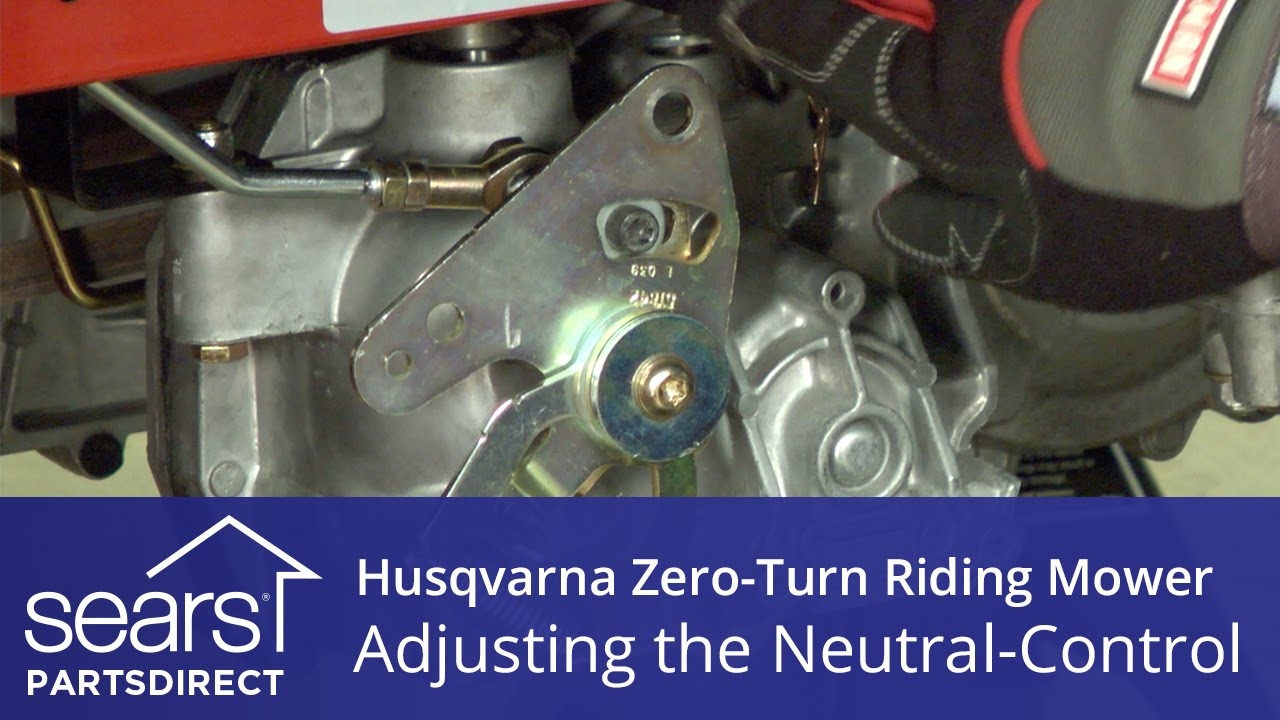

Linkage Neutral Position Calibration
The neutral position of the steering lever linkage must precisely correspond to a zero-drive input to the hydraulic pumps. If the linkage is misaligned, the pumps may continue to deliver hydraulic fluid even when the levers are nominally in the neutral position, causing the mower to creep forward or turn slightly. Calibration ensures that the mower remains stationary when the steering levers are at rest, which is crucial for safety and precise maneuvering.
These facets illustrate the interconnected nature of hydraulic calibration and steering effectiveness. Addressing these aspects systematically is critical for achieving the full potential of a Husqvarna zero-turn mower. Properly calibrated hydraulics lead to predictable steering behavior, reduced operator effort, and improved overall mowing efficiency, furthering the core benefits of proper Husqvarna zero turn steering adjustment.
Conclusion
The preceding discussion has highlighted the integral relationship between various mechanical and hydraulic components and the overall effectiveness of directional control. Precise operation relies on understanding and addressing lever linkage integrity and hydraulic system synchronization, including pump flow, bypass valve settings, and potentially motor speed differentials. Each of these factors plays a crucial role in achieving predictable and responsive handling.
Husqvarna zero turn steering adjustment is not merely a maintenance task but a critical process that ensures operator safety, maximizes equipment longevity, and optimizes cutting performance. Regular attention to these adjustments is essential for maintaining the designed functionality of the mower and achieving consistently high-quality results.
