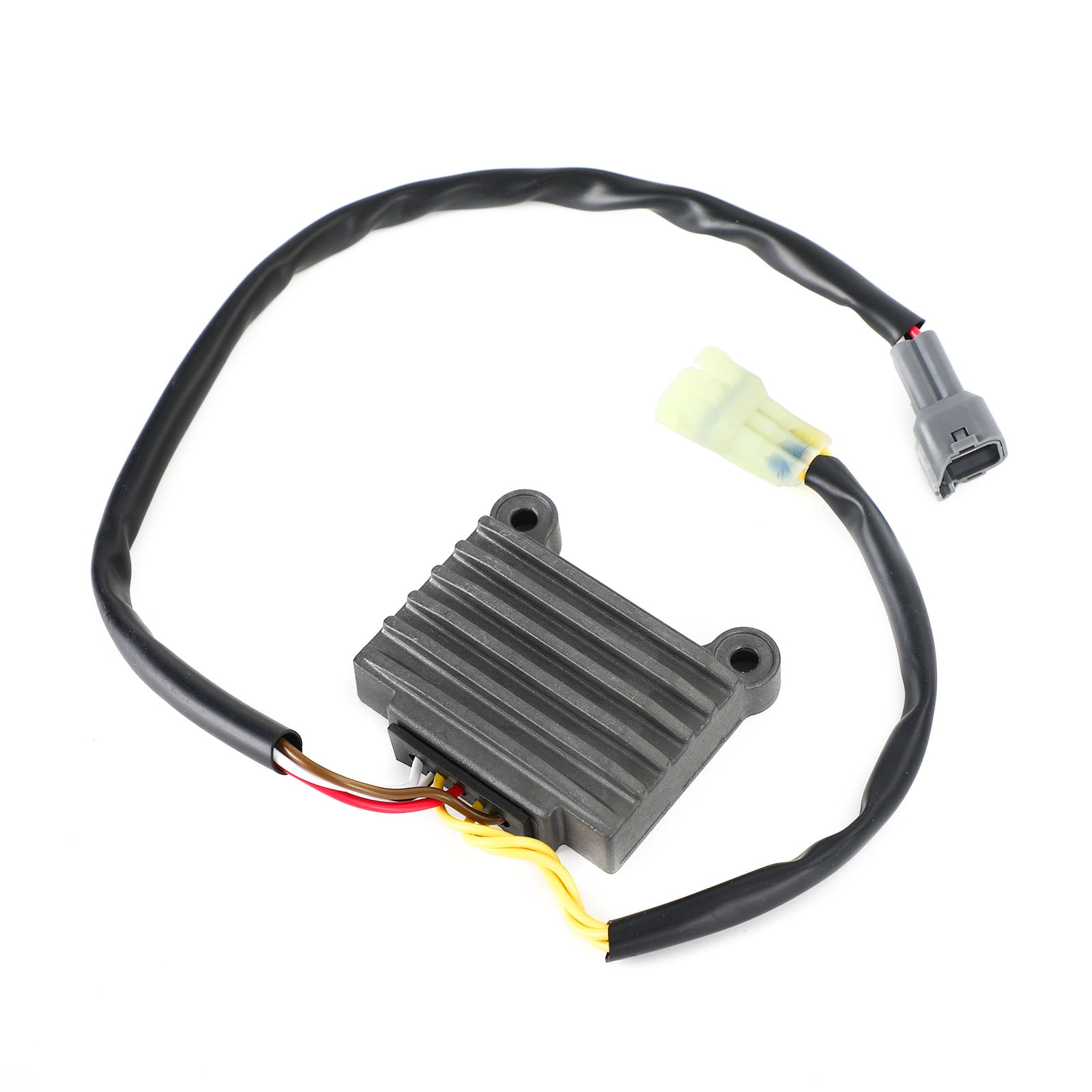

A component within the electrical system of a lawn tractor, specifically those manufactured by Husqvarna, ensures a consistent electrical supply. It manages the output from the engine’s charging system, typically a stator, to maintain a stable voltage. This regulated power is vital for charging the battery and powering various electrical accessories such as lights, electric clutches, and electronic control modules. For example, without this regulation, the charging system could potentially overcharge the battery, leading to damage or premature failure.
The importance of this component lies in protecting sensitive electrical components from voltage spikes and fluctuations. A properly functioning unit extends the lifespan of the battery and ensures reliable operation of the mower’s electrical systems. Historically, early lawn tractors often lacked sophisticated voltage regulation, making them susceptible to electrical issues. The introduction of solid-state regulators significantly improved the reliability and longevity of these machines. Their presence contributes to the mower’s overall operational efficiency and reduces the risk of costly repairs.
The following sections will delve into the specific functions, common failure modes, troubleshooting techniques, and replacement procedures associated with maintaining optimal electrical performance in Husqvarna riding mowers.
1. Voltage Stabilization
Voltage stabilization, in the context of a Husqvarna riding mower, is the primary function performed by the component. The engine’s charging system produces variable voltage output dependent on engine speed. Without regulation, this fluctuating voltage would damage sensitive electronic components, including the ignition module, electronic fuel injection systems (if equipped), and the battery itself. The voltage regulator accepts this variable input and maintains a consistent output voltage, typically around 13.5 to 14.5 volts, optimal for charging the battery and powering the mower’s electrical accessories. For instance, if the engine is at high RPM, the charging system might produce 18 volts or more. The voltage regulator prevents this overvoltage from reaching the battery, which could lead to overheating, electrolyte boiling, and eventual failure.
The implementation of effective voltage stabilization directly impacts the reliability and longevity of the mower’s electrical system. A degraded or malfunctioning regulator can result in either overcharging or undercharging the battery. Overcharging leads to premature battery failure, as described above. Undercharging, on the other hand, prevents the battery from reaching its full charge capacity, resulting in weak starting power and a shortened lifespan. Furthermore, inconsistent voltage supply can cause erratic behavior in other electrical components, leading to operational problems such as flickering lights, intermittent engine stalling, or failure of electric clutches. The practical significance lies in preventing these issues and ensuring the mower operates consistently and reliably under various operating conditions.
In summary, voltage stabilization is not merely a desirable feature, but a critical necessity for the reliable operation of a Husqvarna riding mower. It directly affects the battery’s health and the performance of all electrical components. Understanding the relationship between the charging system’s variable output and the regulator’s role in providing a stable voltage is crucial for troubleshooting electrical issues and ensuring the mower’s long-term functionality. The regulator is designed to fail in a safe manner in order to protect rest of the system. Its design is typically done to shut down the electrical system of a riding mower in order to preserve the components of an electrical system of a Husqvarna riding mower.
2. Battery Protection
Battery protection is a critical function inextricably linked to the performance of the specified electrical component. This component, by regulating the voltage output from the engine’s charging system, prevents overcharging, a primary cause of battery damage and premature failure. Overcharging leads to excessive heat generation within the battery, causing electrolyte evaporation, plate sulfation, and ultimately, a reduced capacity and lifespan. The regulator ensures the battery receives a charging current appropriate for its state of charge, optimizing its performance and extending its useful life. For instance, a mower operated for extended periods at high engine speeds generates significant charging current. Without regulation, this excess current would continuously overcharge the battery, significantly reducing its lifespan. The component actively mitigates this risk.
The function also addresses the risk of undercharging. While less immediately damaging than overcharging, chronic undercharging leads to sulfation, where lead sulfate crystals accumulate on the battery plates, hindering their ability to accept a charge. In cases where the mower is only used for short periods, or if the charging system is operating inefficiently due to component wear, the regulator ensures the battery receives sufficient charge to maintain its optimal condition. Furthermore, battery protection includes preventing voltage spikes from damaging the battery’s internal components. These spikes, often transient, can result from sudden load changes or electrical faults within the mower’s system. The component absorbs or redirects these surges, safeguarding the battery’s delicate internal circuitry.
In conclusion, the concept of battery protection is central to the operational effectiveness of the described component. Its ability to prevent both overcharging and undercharging, as well as to mitigate voltage spikes, ensures the battery’s longevity and the reliable starting and operation of the mower. Understanding the cause-and-effect relationship between the component’s regulation capabilities and the battery’s health is crucial for maintaining optimal performance and minimizing the risk of costly battery replacements. The regulator also safeguards the battery by maintaining a steady voltage, crucial for long-term battery health.
Conclusion
The preceding analysis has underscored the vital function of the Husqvarna riding mower voltage regulator in maintaining a stable and protected electrical system. The component’s capacity to stabilize voltage prevents damage to sensitive electronic components and extends the life of the battery by precluding both overcharging and undercharging scenarios. Its integral role in ensuring consistent power delivery translates directly to improved mower reliability and reduced maintenance requirements.
Therefore, proactive maintenance, including regular inspection and timely replacement of the Husqvarna riding mower voltage regulator, represents a crucial investment in the longevity and operational efficiency of the equipment. Neglecting this essential component can lead to significant electrical system malfunctions and costly repairs. Prudent owners should prioritize its upkeep to ensure continued optimal performance of their mowers.
