This component is a critical assembly in the Husqvarna 435 chainsaw. It functions as a mechanical linkage that transmits power from the engine to the saw chain, allowing the chain to rotate and perform cutting operations. The assembly consists of shoes or segments that engage with a drum under centrifugal force, initiated by the engine’s revolutions per minute (RPM).
Its operational integrity is crucial for effective and safe operation. A properly functioning version ensures efficient power transfer, preventing slippage and maintaining optimal chain speed for clean cuts. Its design also incorporates a safety feature, allowing the chain to disengage at idle speed, reducing the risk of accidental chain rotation. Historically, designs have evolved to improve durability, heat dissipation, and overall performance under demanding conditions.
Further examination will delve into the typical issues encountered, maintenance procedures, replacement guidelines, and methods for diagnosing related problems within the Husqvarna 435 chainsaw system. These aspects are essential for maximizing the lifespan and performance of the equipment.
1. Centrifugal Force
Centrifugal force is a pivotal physical principle underlying the operational functionality of the Husqvarna 435 chainsaw clutch system. Its application within this system allows for the automatic engagement and disengagement of power transmission based on the engine’s rotational speed.
-
Engagement Mechanism

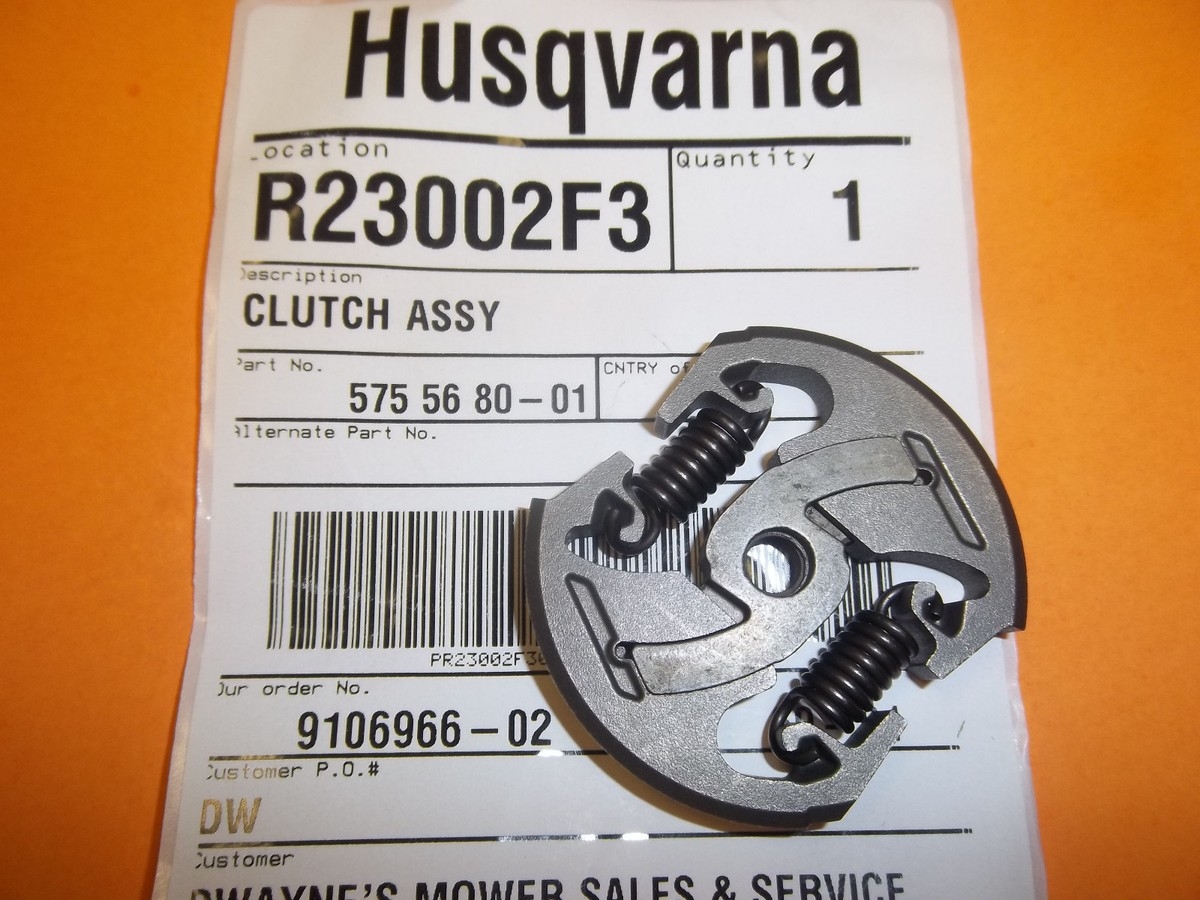

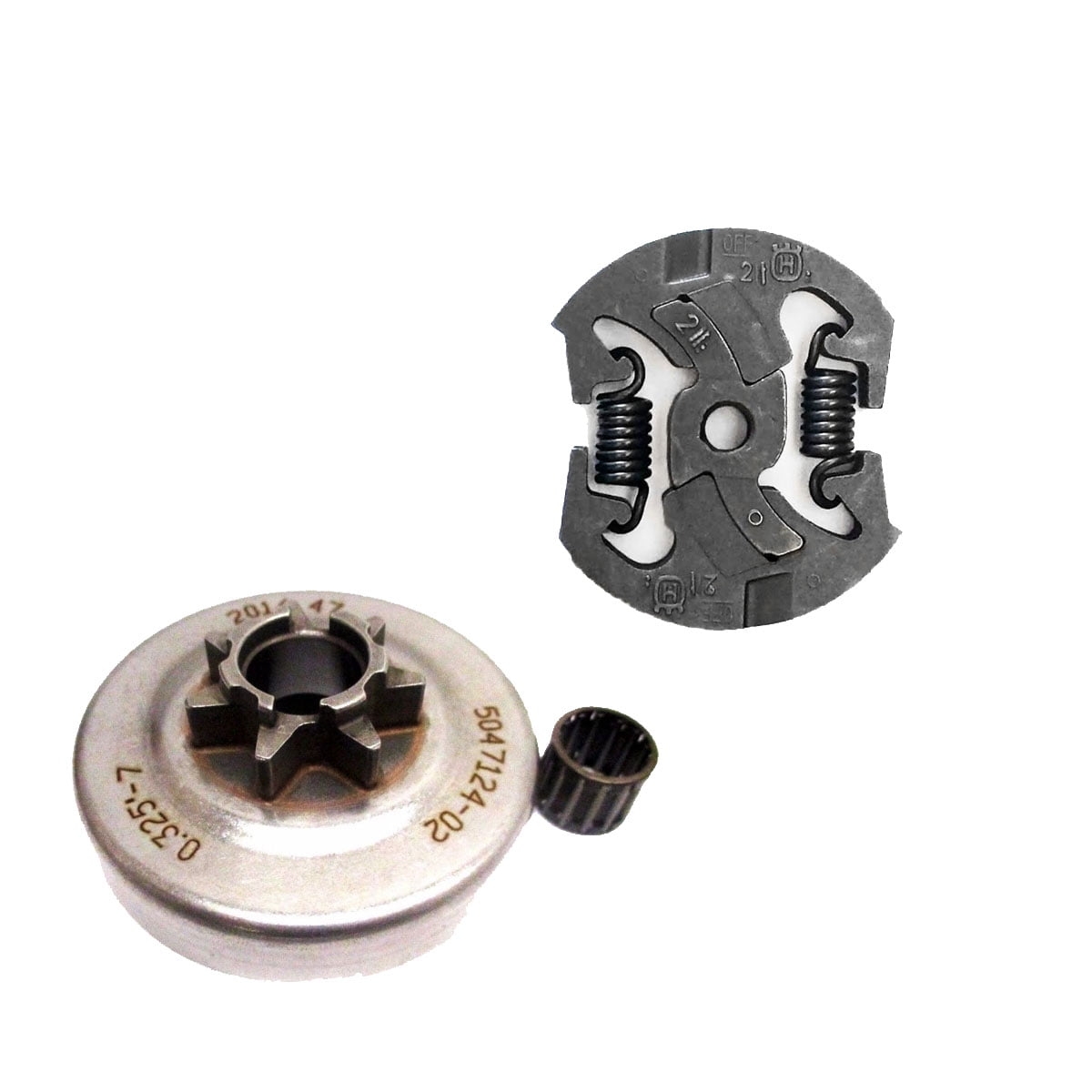

The clutch utilizes centrifugal force to engage shoes against the inner drum. As engine speed increases, the shoes, weighted and spring-loaded, are forced outward. This outward movement causes frictional engagement with the drum, transferring rotational power to the saw chain. The magnitude of the centrifugal force dictates the extent of this engagement.
-
RPM Threshold
A specific revolutions per minute (RPM) threshold must be achieved for sufficient centrifugal force to develop and initiate clutch engagement. Below this threshold, the spring tension on the shoes prevents contact with the drum, allowing the engine to idle without driving the chain. This threshold is calibrated to ensure safe operation and prevent unintentional chain rotation.
-
Material Properties
The materials selected for the shoes and drum are critical for optimal performance under centrifugal forces. The frictional characteristics must be consistent across a range of temperatures and operational speeds. Durability under continuous high-speed rotation is paramount to prevent premature wear or failure of the clutch assembly.
-
Heat Dissipation
The continual engagement and disengagement cycles under centrifugal force generate substantial heat. Effective heat dissipation strategies, such as the design of ventilation channels and the material composition of the clutch components, are essential to prevent overheating. Overheating can lead to diminished frictional properties and accelerated wear.
The described facets of centrifugal force highlight its instrumental role in the function of the Husqvarna 435 clutch, underlining the intricate relationship between physics and engineering within chainsaw operation. The reliability and efficiency of this power transmission method rely heavily on the proper application and management of centrifugal forces.
2. Power Transmission
The Husqvarna 435 chainsaw clutch assembly serves as the critical link in the power transmission system of the tool. Its primary function is to transfer rotational energy from the engine’s crankshaft to the saw chain, enabling the cutting operation. A properly functioning clutch facilitates efficient power transfer, maximizing the chain’s cutting speed and minimizing engine strain. Conversely, a compromised clutch, exhibiting wear or damage, reduces power delivery, leading to decreased cutting efficiency and potential engine overload. For example, a worn friction surface on the clutch shoes results in slippage, where engine power is not effectively translated into chain rotation, manifesting as slow or ineffective cutting.

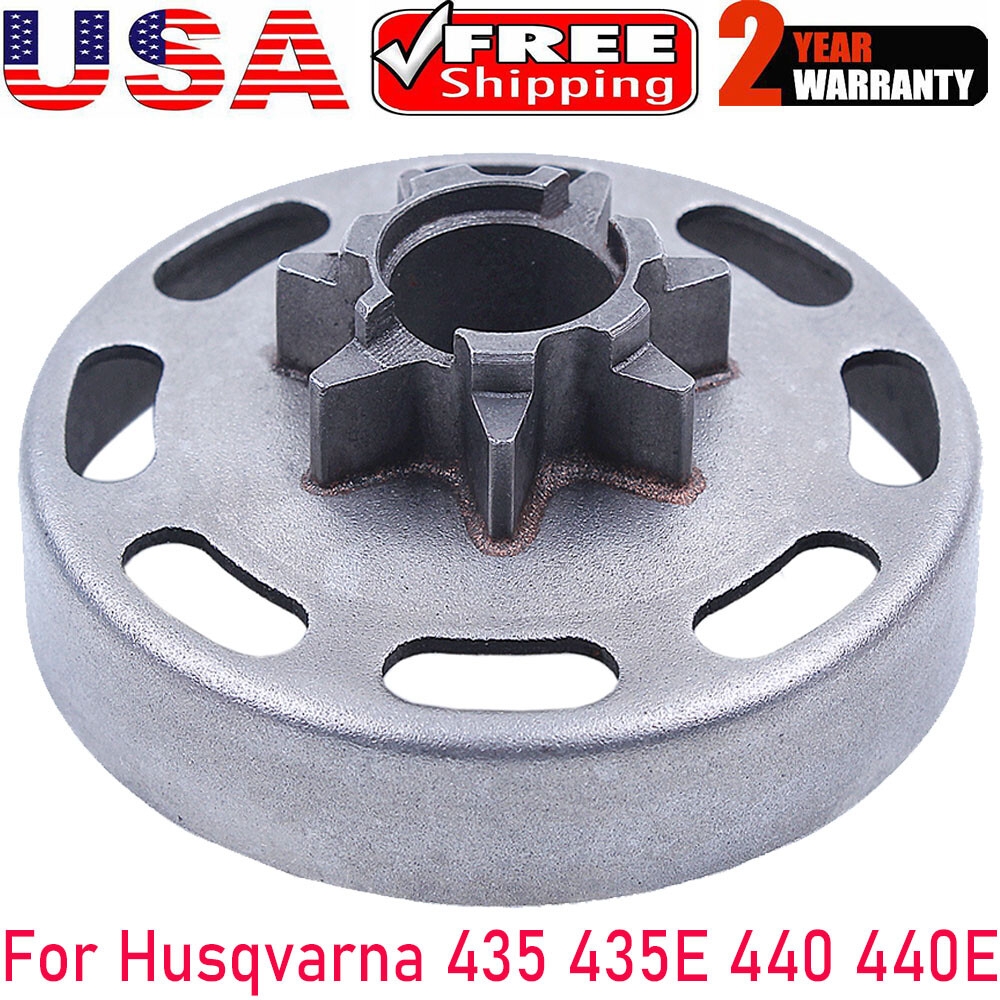

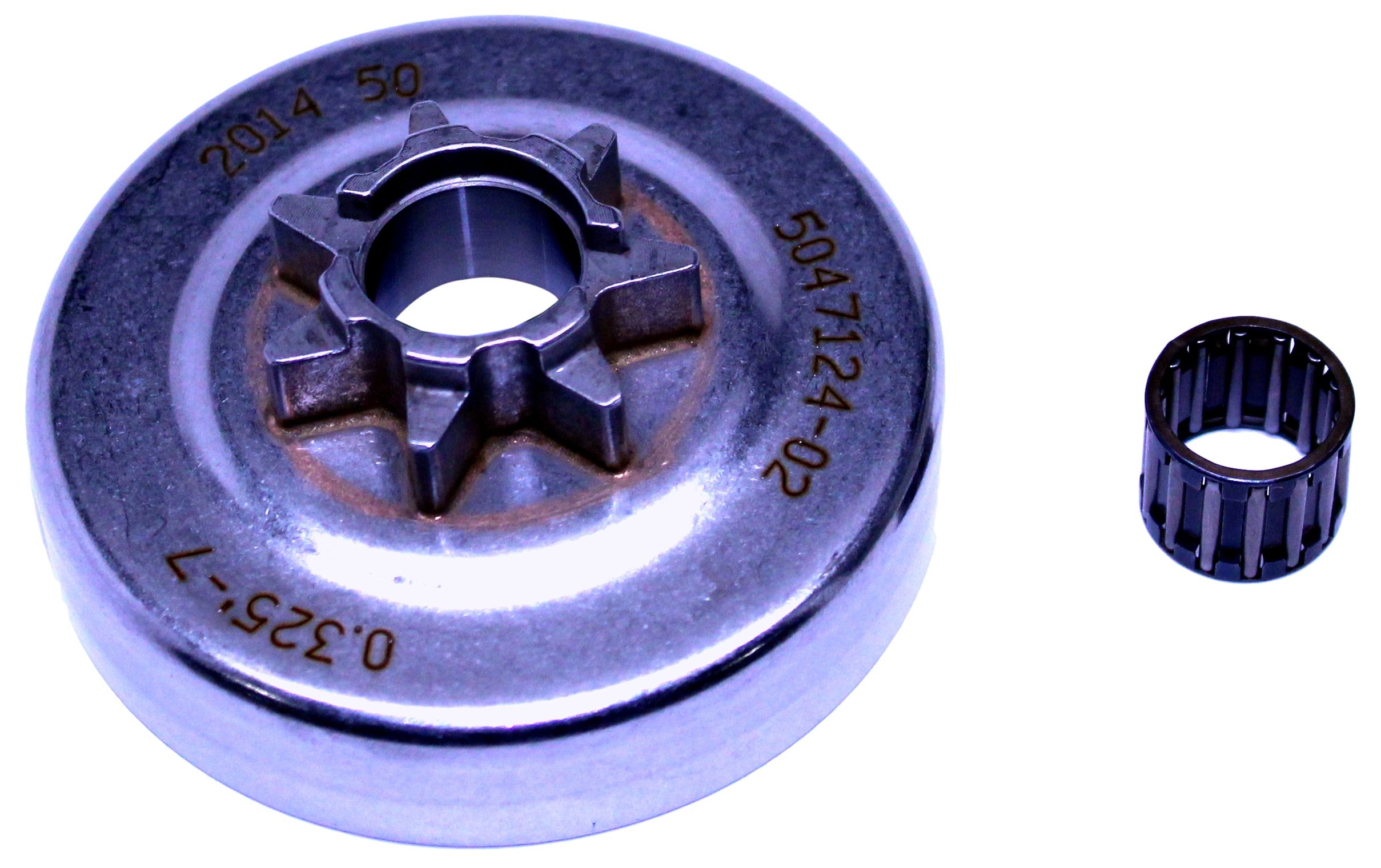

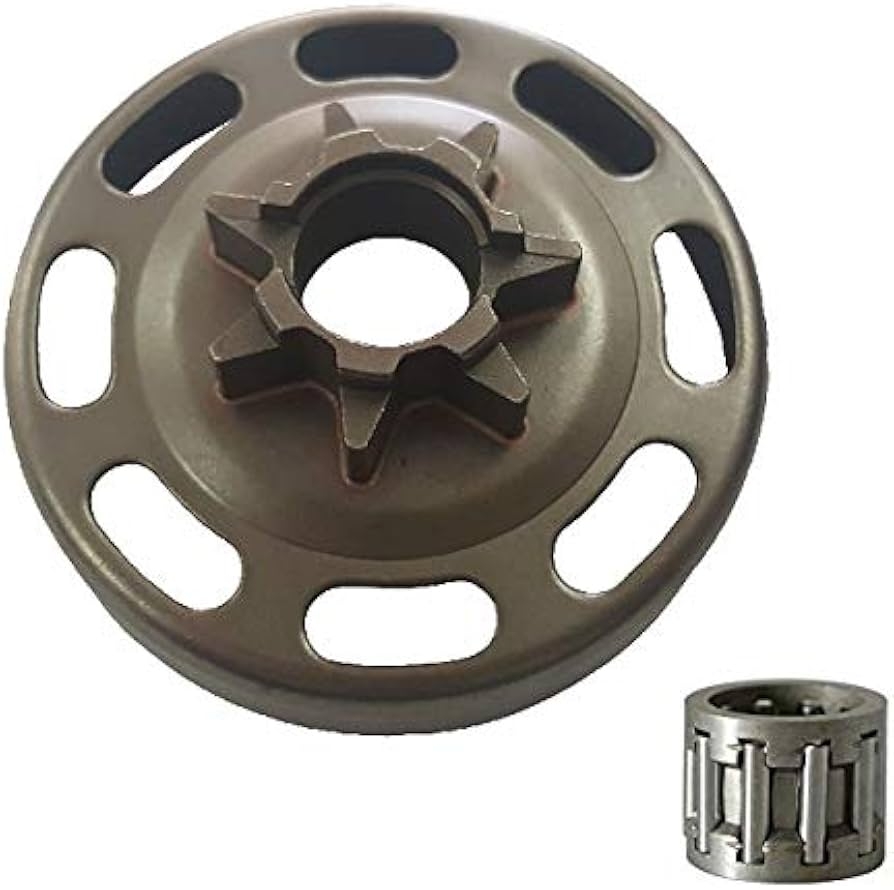

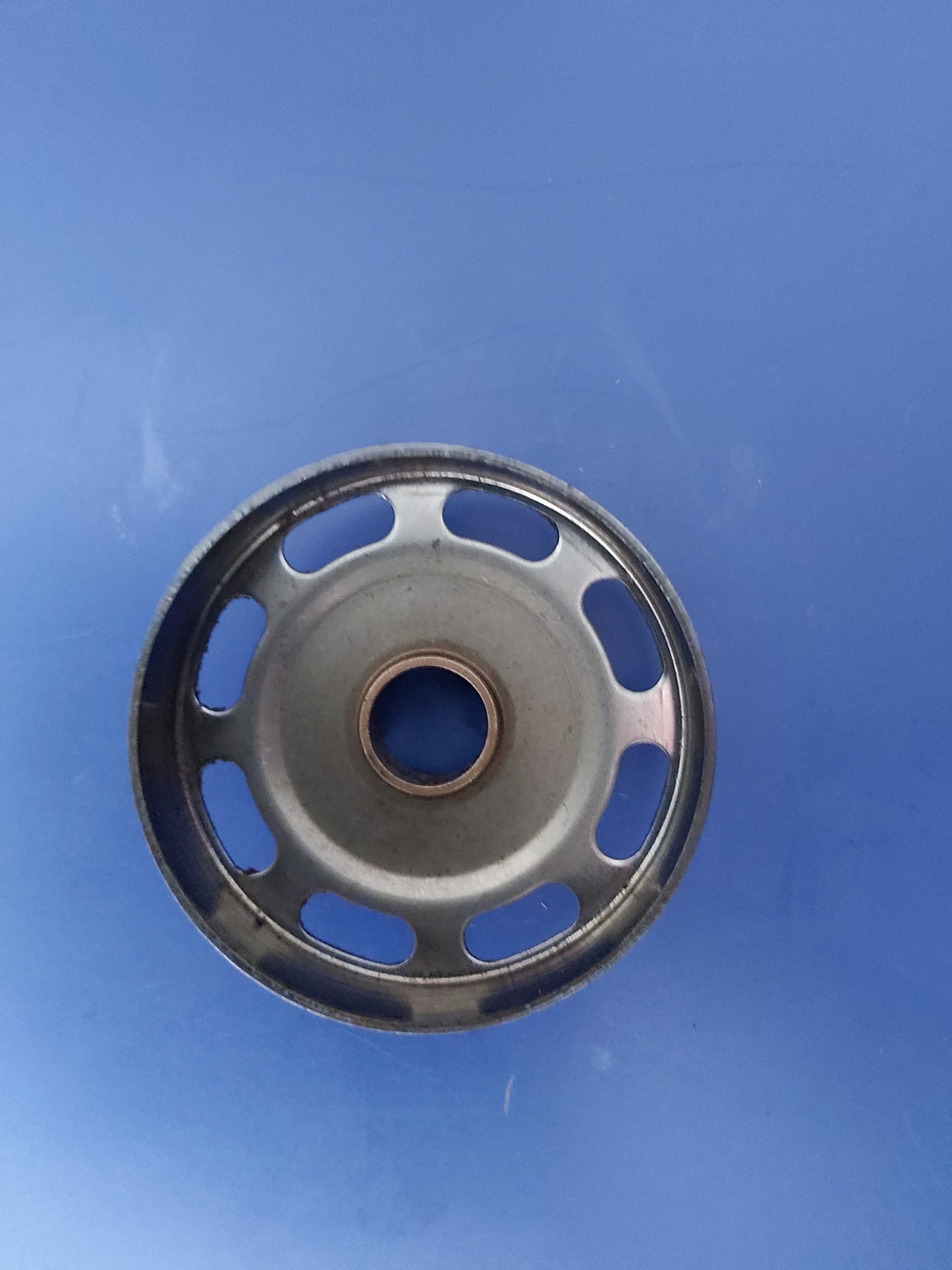

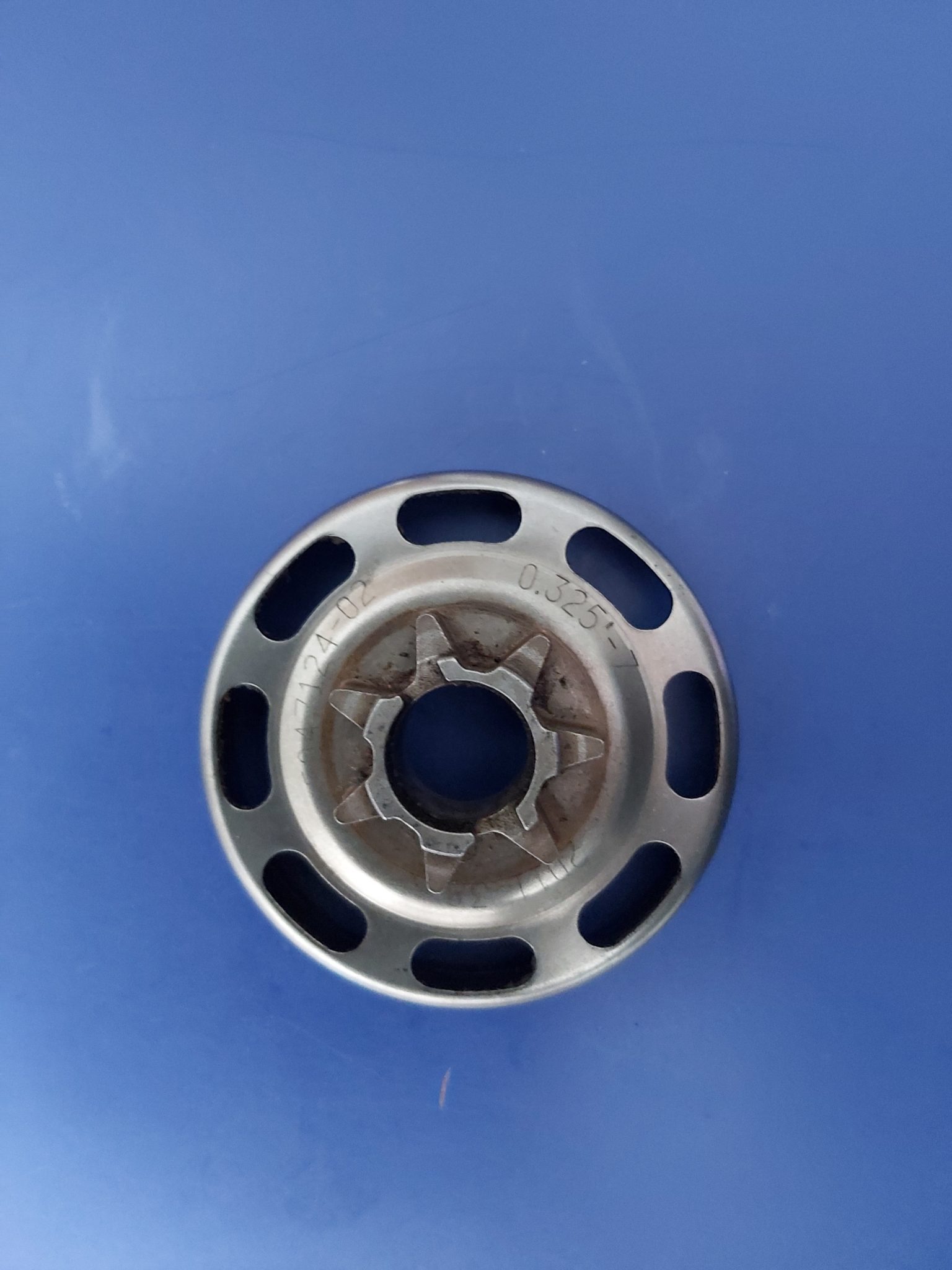

The clutchs design incorporates a centrifugal mechanism, which automatically engages and disengages based on engine RPM. At idle, the clutch disengages, allowing the engine to run without driving the chain. As engine speed increases, centrifugal force overcomes spring tension, causing the clutch shoes to engage with the clutch drum. This engagement transmits torque to the sprocket, which then drives the chain. The efficiency of this power transmission is directly correlated with the condition of the clutch components. Regular maintenance and timely replacement of worn parts are essential to maintaining optimal power transmission and prolonging the life of both the engine and the chain.
Effective power transmission within the chainsaw system is not merely a matter of operational efficiency but also contributes significantly to user safety. A well-maintained clutch provides consistent chain speed, improving control and reducing the risk of kickback. Moreover, the clutch’s disengagement feature at idle minimizes the potential for accidental chain movement, safeguarding the user and surrounding environment. Understanding the mechanics of power transmission via the chainsaw clutch is therefore crucial for both performance optimization and safe operation of the Husqvarna 435.
3. Chain Disengagement
Chain disengagement, a critical safety feature of the Husqvarna 435 chainsaw, is directly dependent on the proper functioning of its clutch. This engineered disengagement occurs when the engine idles, preventing the saw chain from rotating. The clutch mechanism, designed with spring-loaded shoes, retracts from the clutch drum under low engine RPM, thus interrupting the power transfer to the chain. A malfunctioning clutch, due to worn springs or contaminated surfaces, may fail to disengage fully, resulting in unintended chain rotation at idle speed. This scenario presents a significant safety hazard. For example, if the saw is placed on the ground while idling, and the chain continues to rotate, it can cause injury or damage. The absence of proper chain disengagement underscores the need for regular clutch inspection and maintenance.
The efficiency of chain disengagement is also a diagnostic indicator of clutch health. An extended period of chain rotation after throttle release suggests clutch wear or contamination. For instance, excessive grease or debris within the clutch assembly can create friction, preventing the shoes from fully retracting. Conversely, weakened springs may lack the necessary tension to pull the shoes away from the drum, leading to continuous chain engagement. Repair involves cleaning the clutch assembly or replacing worn or damaged components. A functional chain brake supplements the clutches disengagement mechanism, providing an additional layer of safety by mechanically stopping the chain’s rotation.
In summary, chain disengagement is an indispensable safety characteristic of the Husqvarna 435 chainsaw, directly tied to the clutches operational condition. Regular inspection and maintenance are essential to ensure this feature functions as intended. Failure to maintain the clutch can compromise chain disengagement, increasing the risk of accidents and injuries. Therefore, adherence to recommended maintenance schedules and the prompt replacement of worn parts are crucial for the safe and efficient use of the chainsaw.
Conclusion
The Husqvarna chainsaw 435 clutch, as explored, is an integral component that dictates the power transfer and safety parameters of the equipment. Its proper function, dependent on centrifugal force, efficient power transmission, and reliable chain disengagement, directly impacts the performance and longevity of the chainsaw. Consistent maintenance, accurate diagnosis of issues, and timely component replacement are paramount to ensuring continued optimal operation.
Neglecting the maintenance or proper functioning of the Husqvarna chainsaw 435 clutch can have considerable implications on safety and efficiency. Therefore, adherence to manufacturer-recommended maintenance schedules, coupled with a comprehensive understanding of the system, is critical for all operators. Prioritizing the functional integrity of this component will ensure reliable performance and mitigate potential hazards.
