A clutch mechanism in a Husqvarna chainsaw transmits engine power to the chain, enabling it to rotate for cutting. When this component fails, the chain may not engage properly, slip during operation, or fail to spin at all, hindering the saw’s ability to cut wood effectively. Replacing this worn or damaged component is a necessary maintenance procedure for continued chainsaw operation.
Maintaining a functional clutch ensures safe and efficient operation of the chainsaw. A faulty clutch can lead to increased wear and tear on other engine components, posing potential hazards to the operator and reducing the overall lifespan of the tool. Regular inspection and timely replacement of a malfunctioning clutch prevents potential accidents and minimizes downtime, contributing to prolonged usability.
The subsequent sections detail the necessary tools, step-by-step instructions, and safety precautions required to execute a clutch replacement procedure on a Husqvarna chainsaw. These steps will guide the user through the process, ensuring the repair is performed correctly and safely.
1. Disassembly procedure
The disassembly procedure constitutes the initial phase in replacing a chainsaw clutch. A failed clutch renders the saw inoperable or unsafe, necessitating its removal. The process requires detaching the clutch cover, spark plug (for safety), bar and chain, and subsequently the clutch assembly itself. Improper execution during this phase can damage surrounding components, such as the crankshaft or oil pump, leading to more extensive repairs. For instance, using excessive force when attempting to remove a seized clutch can strip threads or fracture the crankshaft, escalating the maintenance requirements significantly.
Specific tools are crucial during disassembly. A piston stop prevents the crankshaft from rotating while loosening the clutch. Using an impact wrench without proper control can damage the internal threads. Furthermore, knowledge of the specific thread direction (left-hand or right-hand) for the clutch is essential to avoid forcibly tightening it. Failure to adhere to these requirements often results in component damage, making the subsequent reassembly phase more difficult and costly.
In summary, meticulous attention to detail during the disassembly procedure is paramount. Damage caused during this initial stage can compound the overall repair complexity and expense. A thorough understanding of the correct techniques and the use of appropriate tools guarantees the safe and efficient removal of the old clutch assembly. This, in turn, sets the foundation for a successful clutch replacement on the chainsaw.
2. Correct installation
Correct clutch installation is paramount to the successful and safe operation of a Husqvarna chainsaw following a clutch replacement. Proper installation directly influences the chainsaw’s cutting performance, longevity, and operator safety. Deviations from specified procedures can lead to immediate malfunction or premature component failure.
-

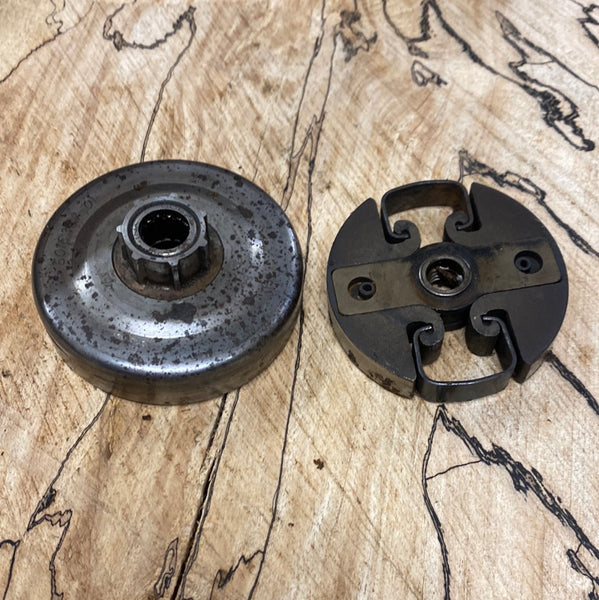

Clutch Alignment and Engagement
Proper alignment ensures smooth power transfer from the engine to the chain. Misalignment results in vibration, reduced cutting efficiency, and accelerated wear on the clutch, crankshaft, and bearings. For instance, a clutch drum not seated correctly on the crankshaft can cause the chain to bind, potentially leading to kickback and injury. Furthermore, insufficient engagement of the clutch shoes can result in slippage, reducing power output and increasing heat buildup, which shortens clutch lifespan.
-
Spring Tension and Shoe Adjustment
The clutch springs regulate the engagement speed and force of the clutch shoes. Incorrect spring tension leads to either premature engagement, causing the chain to spin at idle, or delayed engagement, reducing cutting power at higher engine speeds. Adjusting the shoes ensures even contact with the clutch drum, maximizing friction and preventing uneven wear. Improper adjustments may necessitate further disassembly and component replacement.
-
Thread Engagement and Torque Specification
Chainsaw clutches often employ a specific thread direction (left-hand or right-hand) and require tightening to a specific torque value. Failure to properly engage the threads can lead to the clutch detaching during operation, potentially damaging the engine and posing a safety hazard. Under-torquing can cause the clutch to loosen, while over-torquing can strip the threads on the crankshaft or clutch drum. Referencing the manufacturers specifications is critical to ensure proper thread engagement and torque application.
-
Lubrication of Moving Parts
Adequate lubrication of the clutch drum bearing is crucial for smooth operation and preventing premature wear. Insufficient lubrication increases friction, generating heat and leading to bearing failure. Applying the appropriate type and quantity of grease or oil, as recommended by the manufacturer, reduces friction, dissipates heat, and extends the lifespan of the bearing and clutch assembly. Neglecting this step can result in increased maintenance frequency and potential downtime.
The preceding facets of correct installation collectively contribute to the overall performance and safety of a Husqvarna chainsaw following a clutch replacement. Adhering to specified procedures and paying meticulous attention to detail during each stage of the installation process is essential for achieving optimal results and preventing future complications. Properly executing each of these facets contributes to prolonging the chainsaws operational lifespan.
Frequently Asked Questions
The following addresses common inquiries regarding clutch replacement on Husqvarna chainsaws. The responses are intended to provide accurate and helpful information.
Question 1: What are the primary symptoms indicating a failing chainsaw clutch?
Common symptoms include chain slippage during cutting, the chain spinning at idle speed despite the throttle being disengaged, a burning smell emanating from the clutch area, and difficulty starting the chainsaw. These indicators suggest the clutch shoes, springs, or drum are worn or damaged.
Question 2: Can a worn chainsaw clutch damage other components?
Yes, a failing clutch places undue stress on the crankshaft, bearings, and drive sprocket. Slippage generates excessive heat, which accelerates wear on these components. Prolonged operation with a worn clutch can lead to costly repairs beyond the clutch itself.
Question 3: Is specialized tooling required for chainsaw clutch replacement?

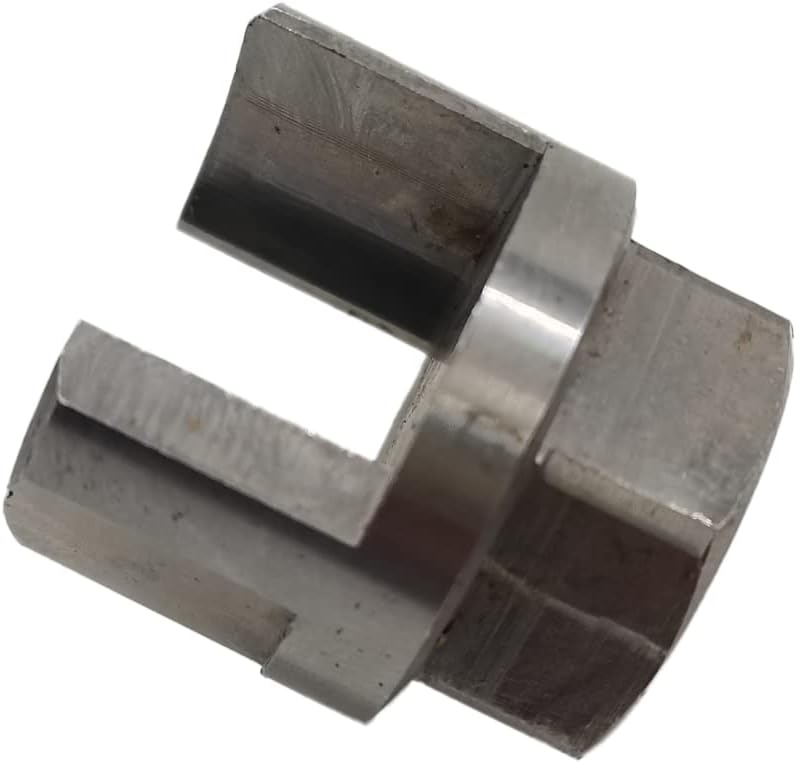

Specific tools, such as a piston stop and clutch removal tool, are recommended for safe and effective clutch replacement. A piston stop prevents crankshaft rotation while loosening the clutch, and a specialized wrench ensures proper clutch removal without damaging the threads. While alternative methods exist, using designated tools minimizes risk.
Question 4: What safety precautions should be observed during chainsaw clutch replacement?
Always disconnect the spark plug wire to prevent accidental starting. Wear appropriate personal protective equipment, including gloves and eye protection. Ensure the chainsaw is placed on a stable surface, and work in a well-lit area. Refer to the manufacturer’s service manual for specific safety guidelines related to the chainsaw model.
Question 5: Are aftermarket clutches a suitable replacement option?
Aftermarket clutches can be viable alternatives, but quality varies significantly. Opt for reputable brands known for manufacturing durable and reliable components. Verify the aftermarket clutch is compatible with the specific Husqvarna chainsaw model. Genuine OEM parts often offer superior fit and performance, but may come at a higher cost.
Question 6: What maintenance practices prolong clutch life?
Regularly inspect the clutch for signs of wear or damage. Keep the clutch area clean and free of debris. Ensure proper chain tension and lubrication. Avoid prolonged periods of idling, as this can cause premature clutch wear. Operating the chainsaw within its designed parameters extends clutch life.
Proper diagnosis, meticulous execution, and adherence to safety guidelines are crucial for a successful chainsaw clutch replacement. Ignoring these considerations increases the potential for equipment damage and personal injury.
Proceed to the subsequent section for a detailed breakdown of the clutch replacement procedure.
Expert Guidance for Chainsaw Clutch Replacement
The subsequent recommendations are intended to improve the efficiency and safety of clutch replacement procedures on Husqvarna chainsaws. Implementation of these tips can minimize complications and prolong the operational lifespan of the tool.
Tip 1: Employ a Dedicated Workspace: Designate a clean, well-lit, and organized area for the clutch replacement. Adequate workspace reduces the likelihood of losing small components and minimizes the risk of accidental damage during disassembly and reassembly.
Tip 2: Consult the Manufacturer’s Service Manual: Prior to commencing the replacement, thoroughly review the service manual specific to the Husqvarna chainsaw model. The manual contains detailed diagrams, torque specifications, and safety protocols crucial for proper execution.
Tip 3: Thoroughly Inspect Peripheral Components: During disassembly, carefully examine the condition of the crankshaft, bearings, and clutch drum. Address any signs of wear, damage, or contamination before installing the new clutch. Replacing these components concurrently can prevent premature failure of the new clutch.
Tip 4: Apply Appropriate Lubrication: Lubricate the clutch drum bearing with high-temperature grease specifically designed for chainsaw applications. Adequate lubrication reduces friction and heat, extending the bearing’s operational life.
Tip 5: Verify Clutch Spring Tension: Ensure the clutch springs exhibit proper tension and are free from damage. Weakened or broken springs result in slippage and reduced cutting performance. Replacing the springs concurrently with the clutch is recommended.
Tip 6: Accurately Torque Fasteners: Employ a calibrated torque wrench to tighten the clutch retaining nut to the manufacturer’s specified torque value. Under-torquing can cause the clutch to loosen, while over-torquing can damage the crankshaft threads.
Tip 7: Perform a Post-Installation Test: After reassembly, conduct a test run to verify proper clutch engagement and disengagement. Observe the chain for smooth operation and listen for any unusual noises. Address any issues promptly.
Adherence to these recommendations contributes to a more successful and durable clutch replacement. Prioritizing meticulousness and attention to detail during each stage of the procedure can significantly improve the chainsaw’s overall performance and reliability.
The subsequent section provides concluding remarks and reinforces the importance of proper chainsaw maintenance.
Conclusion
This exploration of how to change a clutch on a Husqvarna chainsaw has outlined the essential steps, necessary tools, and crucial safety precautions required for effective clutch replacement. Emphasis has been placed on proper disassembly, correct installation techniques, and the identification of potential issues that may arise during the process. Understanding the function of the clutch, recognizing symptoms of its failure, and adhering to manufacturer specifications are critical for achieving optimal results.
Proper chainsaw maintenance, including clutch replacement when necessary, ensures the tool’s continued safe and efficient operation. Neglecting these procedures can lead to increased risk of equipment failure, potential operator injury, and diminished productivity. Therefore, responsible chainsaw ownership necessitates a commitment to understanding and executing these fundamental maintenance tasks, contributing to both the longevity of the equipment and the safety of the user.
